ML15F - ML25F & ML25H - PA Horn Loudspeakers - Multi-tap 15 & 25 watt, 70 VRMS
Datasheet
Installation
ML15F - 15W PA loudspeaker
The ML15F 15W PA loudspeaker is suitable for harsh environments with high ambient noise levels. The small ML15F can produce a maximum SPL of 110 dB (A) at 10' coverage and has better intelligibility and dispersion characteristics, as well as an optimized frequency range. This makes it perfect for all situations that need a strong voice notification solution. The ML15F features IP66 & IP67 (Type 4/4X/13) enclosures manufactured from high-impact, fire-retardant ABS. All models have dual cable entries and large termination areas containing in-& out-terminals. The 316 stainless steel bracket is ratchet-adjustable, permitting optimum positioning. Available with 25, 70 and 100V line transformers or in 8 or 16 Ohm low-impedance versions. Approved for professional and commercial use, as well as UL and cUL for fire alarm emergencies.

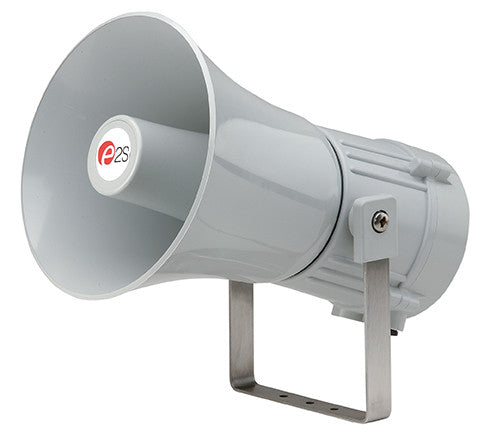

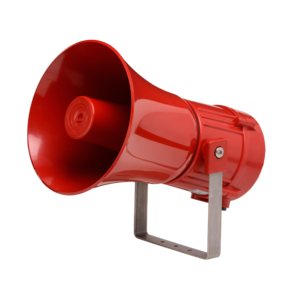

ML25F - 25W PA loudspeaker
The ML25F 25W PA loudspeaker is suitable for harsh environments with high ambient noise levels. Generating a maximum SPL of 114 db (A) at 10' coverage, with a wide frequency range and superior intelligibility, the ML25F is ideal for all applications requiring a robust solution for voice notification. The ML25F features IP66 & IP67 (Type 4/4X) enclosures and re-entrant flare horns manufactured from high-impact, fire-retardant ABS. All models have dual cable entries and large termination areas containing in- & out-terminals. The 316 stainless steel bracket is ratchet-adjustable, permitting optimum positioning. Available with 25, 70 and 100V line transformers or in 8 or 16 Ohm low-impedance versions. UL & cUL approved for Fire Alarm emergency, and Professional & Commercial use.

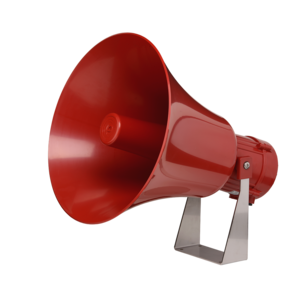

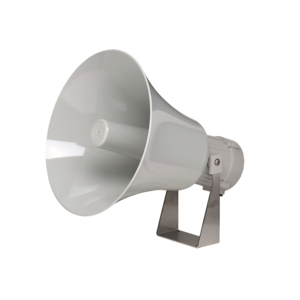

ML25H - 25W PA loudspeaker
The ML25H 25W PA loudspeaker is suitable for harsh environments with high ambient noise levels. Featuring a high-output flare horn generating a maximum 119 dB (A) @ 10' coverage, along with a wide frequency range and exceptional acoustic clarity, the ML25H is ideal for all applications requiring wide-area notification. The ML25H features IP66 & IP67 (Type 4/4X) enclosures manufactured from high-impact, fire-retardant ABS. All models have dual cable entries and large termination areas containing in- & out-terminals. The 316 stainless steel bracket is ratchet-adjustable, permitting optimum positioning. Available with 25 and 70V line transformers or in 8 or 16 Ohm low impedance versions. UL & cUL approved for Fire Alarm emergency, and Professional & Commercial use.
