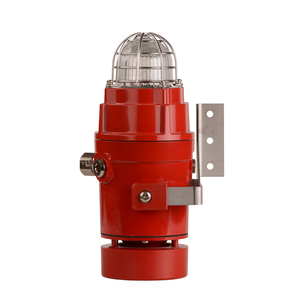

D1xC1X05R, D1xC1X10R Explosion proof Radial Alarm Horn & Xenon Strobe - 5&10 Joule - Red & Clear lens-GAS

Datasheets

• D1xC1X05R 5 Joule
• D1xC1X10R 10 Joule
• D1xC1 Video

Installation

• Class I Gas installation manual

FEATURES 5 joules

101dB(A) maximum output @10' horn & 5 Joule Xenon. The D1xC1X05R is a high output alarm horn sounder with omni-directional radial horn combined with a 500,000-cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures the D1xC1X05R is suitable for all Class I & II Division 1, Zone 1 & 20 explosion proof signaling applications. The Class I DC version is approved for public mode fire alarm use (UL464 alarm horn) and private mode fire alarm use (strobe beacon).

FEATURES 10 joules

101dB(A) @ maximum output @10' horn & 10 Joule Xenon. The D1xC1X10R is a high output, alarm horn sounder with omni-directional radial horn combined with a 1,000,000-cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures the D1xC1X10R is suitable for all Class I Division 1 & Zone 1 explosion proof signaling applications. The DC version is approved for public mode fire alarm use (UL464 alarm horn) and private mode fire alarm use (strobe beacon)
