AM300X-R, AM302X-R, 15 &30 watt Explosion proof multi-tap Fire Alarm Speakers

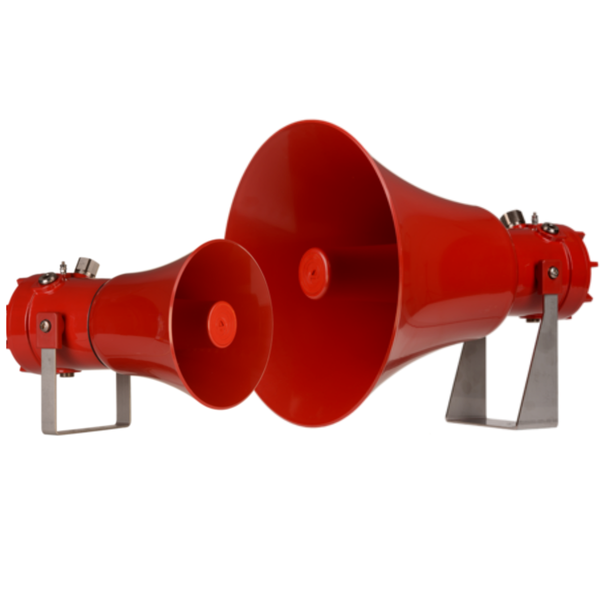

- The Federal Signal Model AM300X-R and the AM302X-R are transformer coupled, re-entrant speakers for use in public address or paging applications. These speakers feature rugged cones and projectors constructed of spun aluminum. The speaker wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum compartment. All external surfaces are sealed with a red powder coat paint. Power handling for the AM300X-R is 15 watt and the AM302X-R is rated for 30 watt. There are transformer taps at 15, 7, 2 and 1 watt for the AM300X-R and 30, 15 and 8 watt for the AM302X-R. Both speakers are designed for use in 25 or 70 Vrms distributed systems. These speakers are UL and CUL Listed for Class 1, Division 1, Groups B, C, and D environments. A heavy-duty U-bracket provides simple wall mounting. The unique shape of the speaker projectors provides a 60° sound dispersion. The entire speaker and can be swiveled 180° in order to direct sound effectively.
